1、Shiro简介
1.1、什么是Shiro
Apache Shiro是一个强大且易用的Java安全框架,执行身份验证、授权、密码和会话管理。
使用Shiro的易于理解的API,您可以快速、轻松地获得任何应用程序,从最小的移动应用程序到最大的网络和企业应用程序。

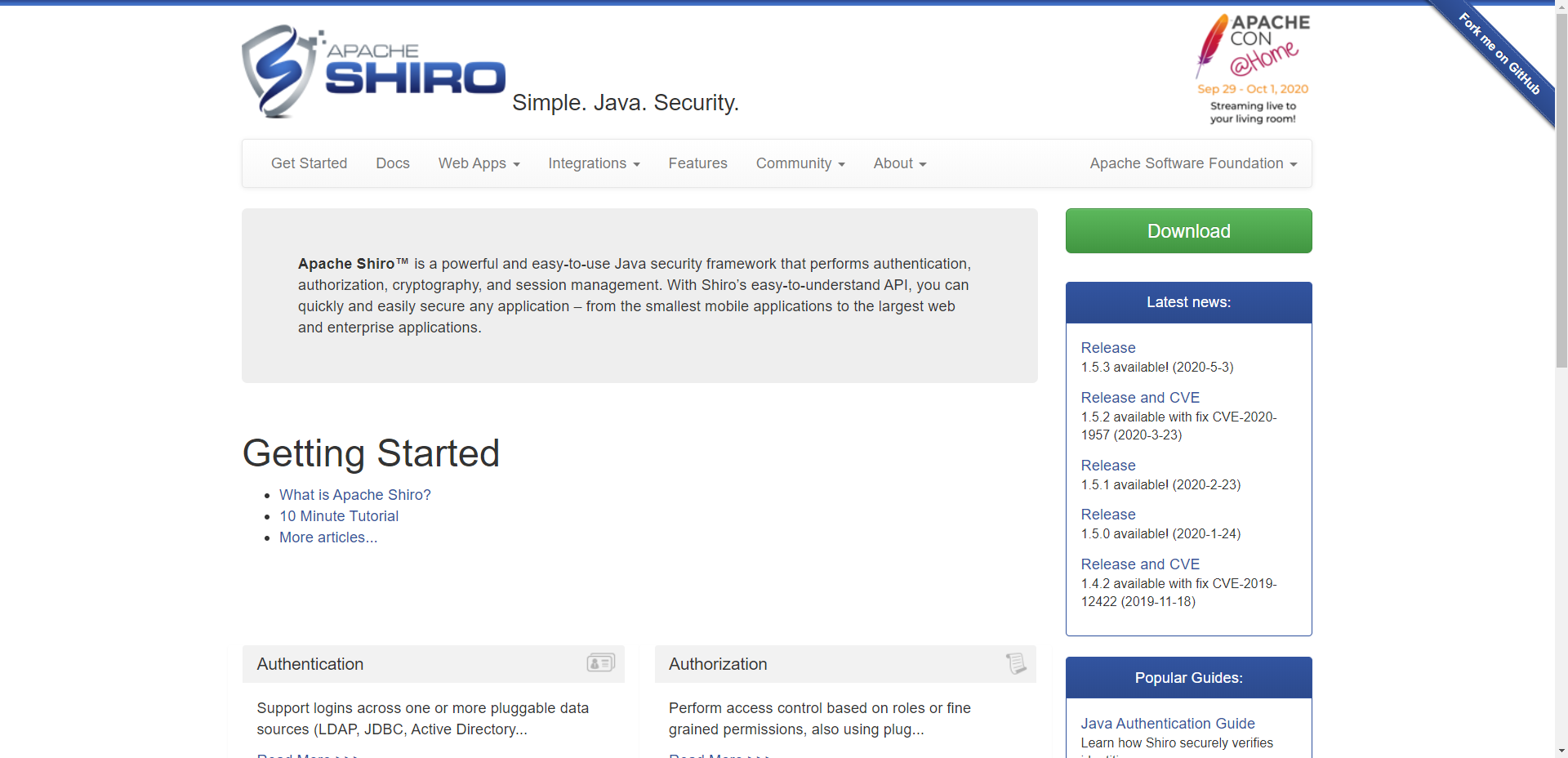

文档地址:https://shiro.apache.org/tutorial.html

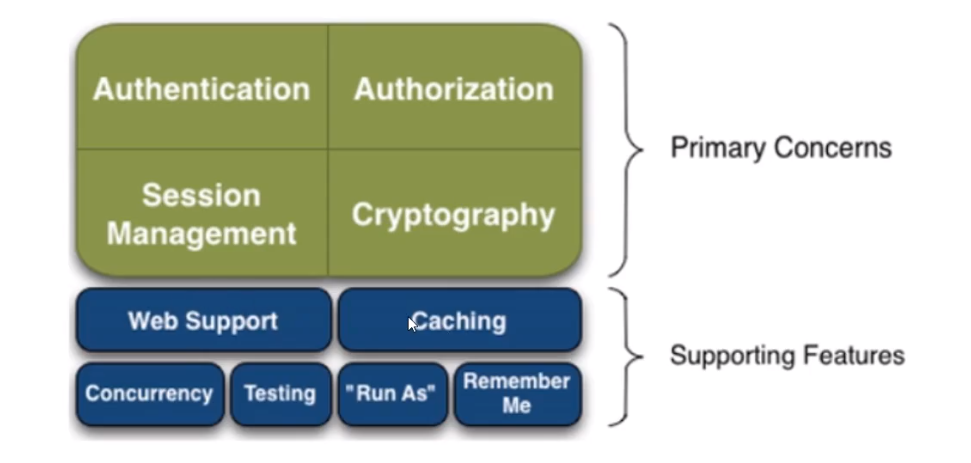

1.2、功能

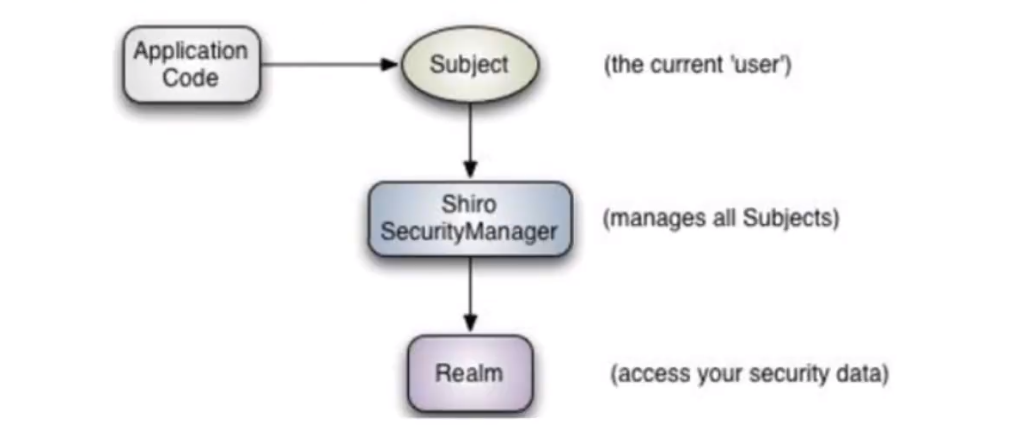

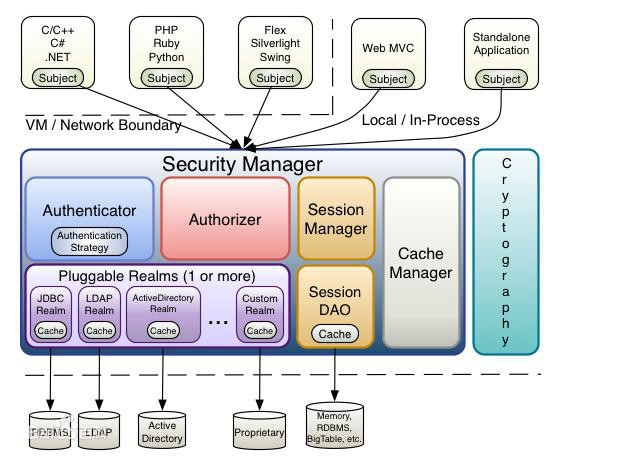

1.3、Shiro架构


2、shiro程序
2.1、环境搭建
快速入门源代码地址:https://github.com/apache/shiro/tree/master/samples/quickstart
新建一个普通的Maven项目,
springboot-06-shiro删除src目录,创建一个模块
hello-shiro导入maven依赖
<dependencies> <dependency> <groupId>org.apache.shiro</groupId> <artifactId>shiro-core</artifactId> <version>1.4.1</version> </dependency> <!-- SLF4J --> <dependency> <groupId>org.slf4j</groupId> <artifactId>slf4j-simple</artifactId> <version>1.7.21</version> </dependency> <dependency> <groupId>org.slf4j</groupId> <artifactId>jcl-over-slf4j</artifactId> <version>1.7.21</version> </dependency> <dependency> <groupId>log4j</groupId> <artifactId>log4j</artifactId> <version>1.2.17</version> </dependency> </dependencies>配置
log4j.properties文件log4j.rootLogger=INFO, stdout log4j.appender.stdout=org.apache.log4j.ConsoleAppender log4j.appender.stdout.layout=org.apache.log4j.PatternLayout log4j.appender.stdout.layout.ConversionPattern=%d %p [%c] - %m %n # General Apache libraries log4j.logger.org.apache=WARN # Spring log4j.logger.org.springframework=WARN # Default Shiro logging log4j.logger.org.apache.shiro=INFO # Disable verbose logging log4j.logger.org.apache.shiro.util.ThreadContext=WARN log4j.logger.org.apache.shiro.cache.ehcache.EhCache=WARN创建

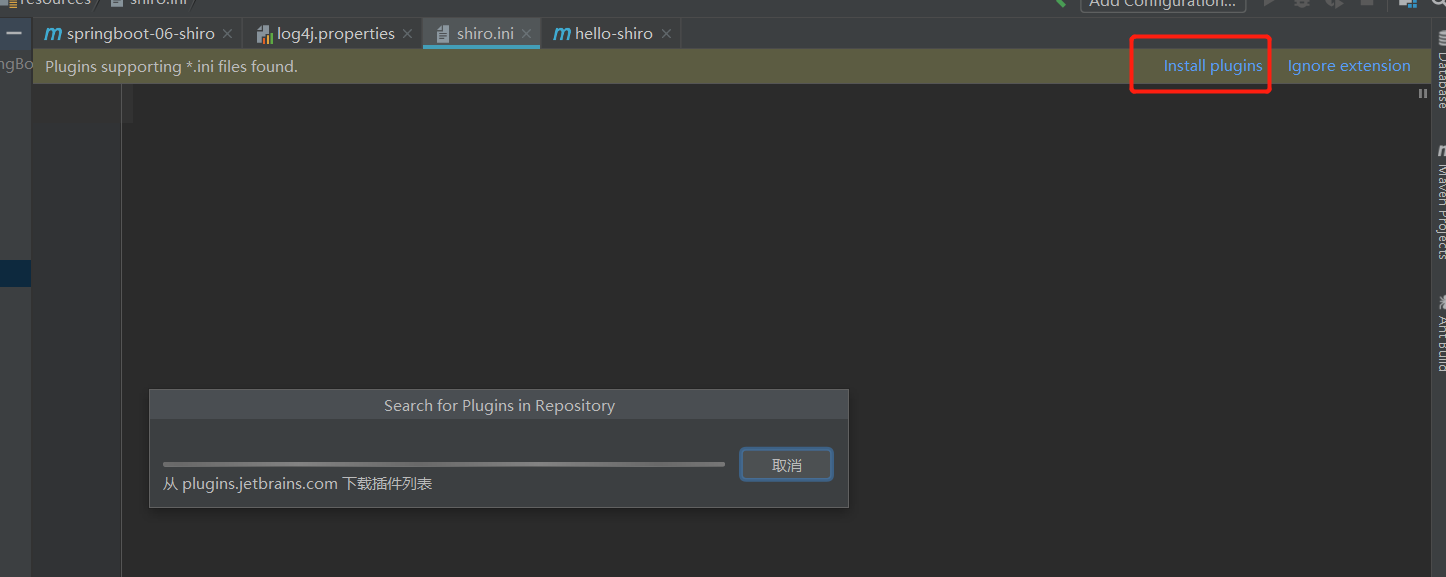

shiro.ini文件[users] root = secret, admin guest = guest, guest presidentskroob = 12345, president darkhelmet = ludicrousspeed, darklord, schwartz lonestarr = vespa, goodguy, schwartz # ----------------------------------------------------------------------------- # Roles with assigned permissions # roleName = perm1, perm2, ..., permN # ----------------------------------------------------------------------------- [roles] admin = * schwartz = lightsaber:* goodguy = winnebago:drive:eagle5安装ini插件

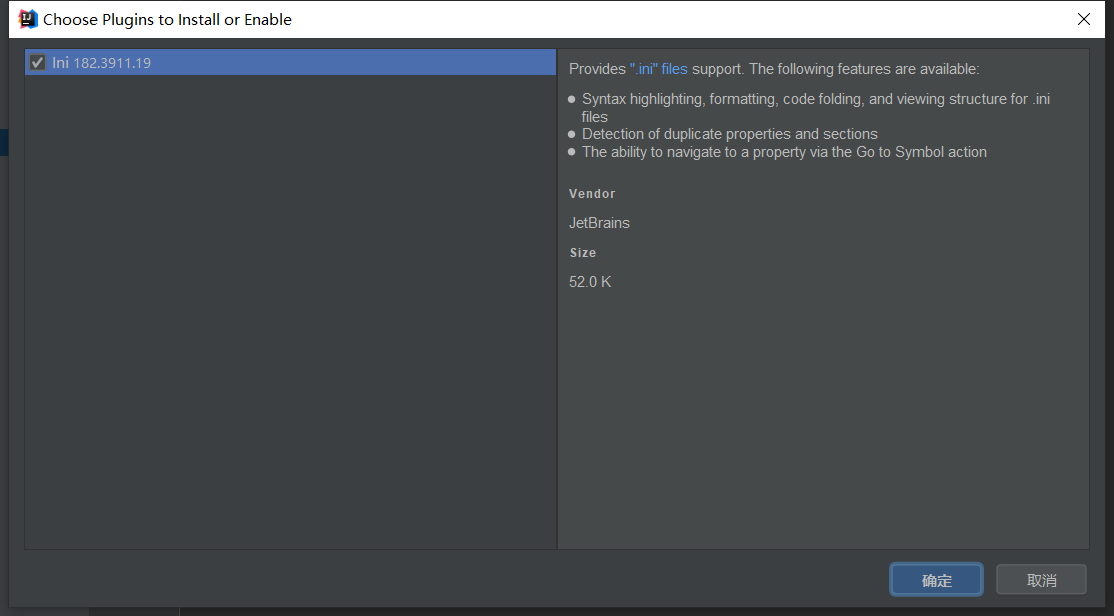

完成之后重启即可

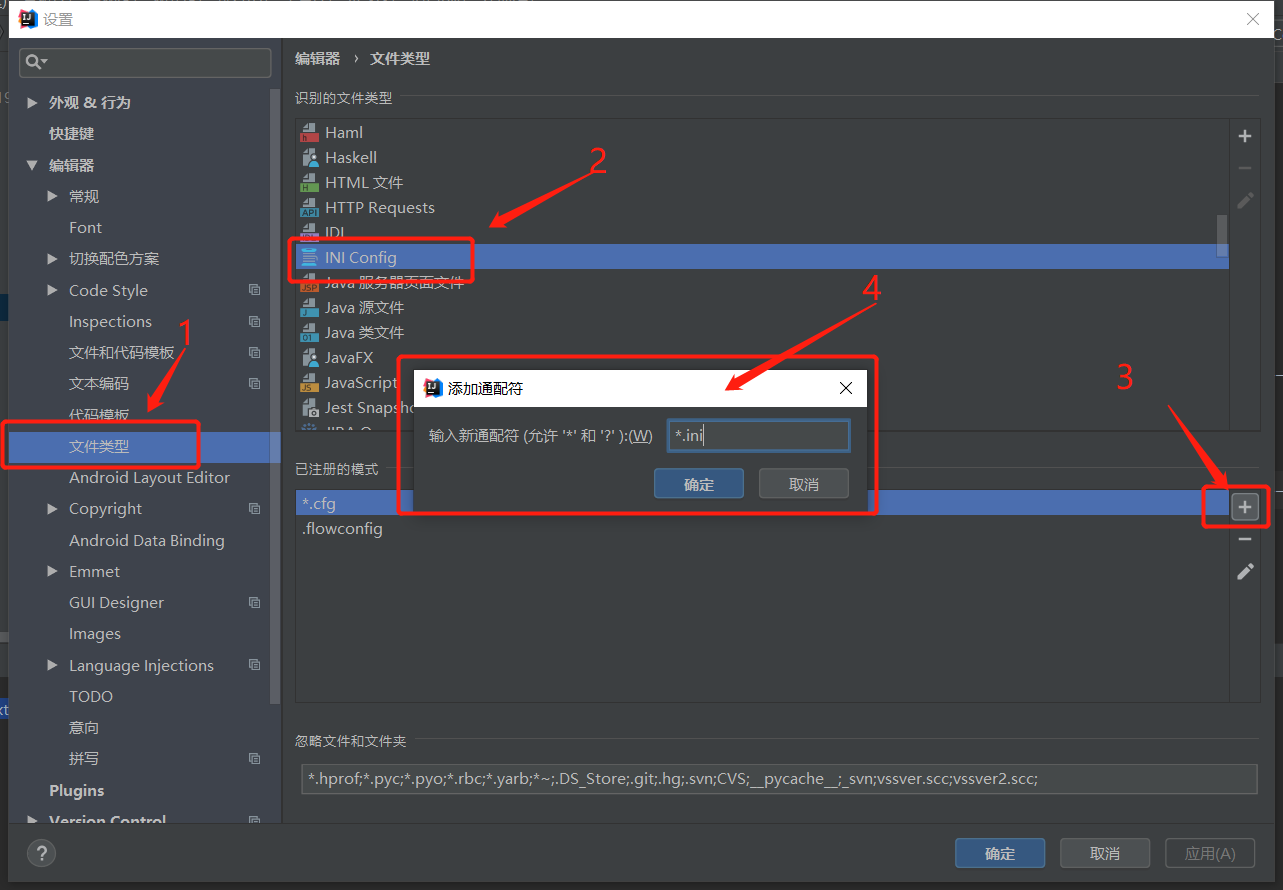

如果还是不亮,就需要进行如下设置

创建
Quickstart.java文件import org.apache.shiro.SecurityUtils; import org.apache.shiro.authc.*; import org.apache.shiro.ini.IniSecurityManagerFactory; import org.apache.shiro.mgt.SecurityManager; import org.apache.shiro.session.Session; import org.apache.shiro.subject.Subject; import org.apache.shiro.lang.util.Factory; import org.slf4j.Logger; import org.slf4j.LoggerFactory;
/**
* Simple Quickstart application showing how to use Shiro’s API.
*
* @since 0.9 RC2
*/
public class Quickstart {
private static final transient Logger log = LoggerFactory.getLogger(Quickstart.class);
public static void main(String[] args) {
// The easiest way to create a Shiro SecurityManager with configured
// realms, users, roles and permissions is to use the simple INI config.
// We'll do that by using a factory that can ingest a .ini file and
// return a SecurityManager instance:
// Use the shiro.ini file at the root of the classpath
// (file: and url: prefixes load from files and urls respectively):
Factory<SecurityManager> factory = new IniSecurityManagerFactory("classpath:shiro.ini");
SecurityManager securityManager = factory.getInstance();
// for this simple example quickstart, make the SecurityManager
// accessible as a JVM singleton. Most applications wouldn't do this
// and instead rely on their container configuration or web.xml for
// webapps. That is outside the scope of this simple quickstart, so
// we'll just do the bare minimum so you can continue to get a feel
// for things.
SecurityUtils.setSecurityManager(securityManager);
// Now that a simple Shiro environment is set up, let's see what you can do:
// get the currently executing user:
Subject currentUser = SecurityUtils.getSubject();
// Do some stuff with a Session (no need for a web or EJB container!!!)
Session session = currentUser.getSession();
session.setAttribute("someKey", "aValue");
String value = (String) session.getAttribute("someKey");
if (value.equals("aValue")) {
log.info("Retrieved the correct value! [" + value + "]");
}
// let's login the current user so we can check against roles and permissions:
if (!currentUser.isAuthenticated()) {
UsernamePasswordToken token = new UsernamePasswordToken("lonestarr", "vespa");
token.setRememberMe(true);
try {
currentUser.login(token);
} catch (UnknownAccountException uae) {
log.info("There is no user with username of " + token.getPrincipal());
} catch (IncorrectCredentialsException ice) {
log.info("Password for account " + token.getPrincipal() + " was incorrect!");
} catch (LockedAccountException lae) {
log.info("The account for username " + token.getPrincipal() + " is locked. " +
"Please contact your administrator to unlock it.");
}
// ... catch more exceptions here (maybe custom ones specific to your application?
catch (AuthenticationException ae) {
//unexpected condition? error?
}
}
//say who they are:
//print their identifying principal (in this case, a username):
log.info("User [" + currentUser.getPrincipal() + "] logged in successfully.");
//test a role:
if (currentUser.hasRole("schwartz")) {
log.info("May the Schwartz be with you!");
} else {
log.info("Hello, mere mortal.");
}
//test a typed permission (not instance-level)
if (currentUser.isPermitted("lightsaber:wield")) {
log.info("You may use a lightsaber ring. Use it wisely.");
} else {
log.info("Sorry, lightsaber rings are for schwartz masters only.");
}
//a (very powerful) Instance Level permission:
if (currentUser.isPermitted("winnebago:drive:eagle5")) {
log.info("You are permitted to 'drive' the winnebago with license plate (id) 'eagle5'. " +
"Here are the keys - have fun!");
} else {
log.info("Sorry, you aren't allowed to drive the 'eagle5' winnebago!");
}
//all done - log out!
currentUser.logout();
System.exit(0);
}
}

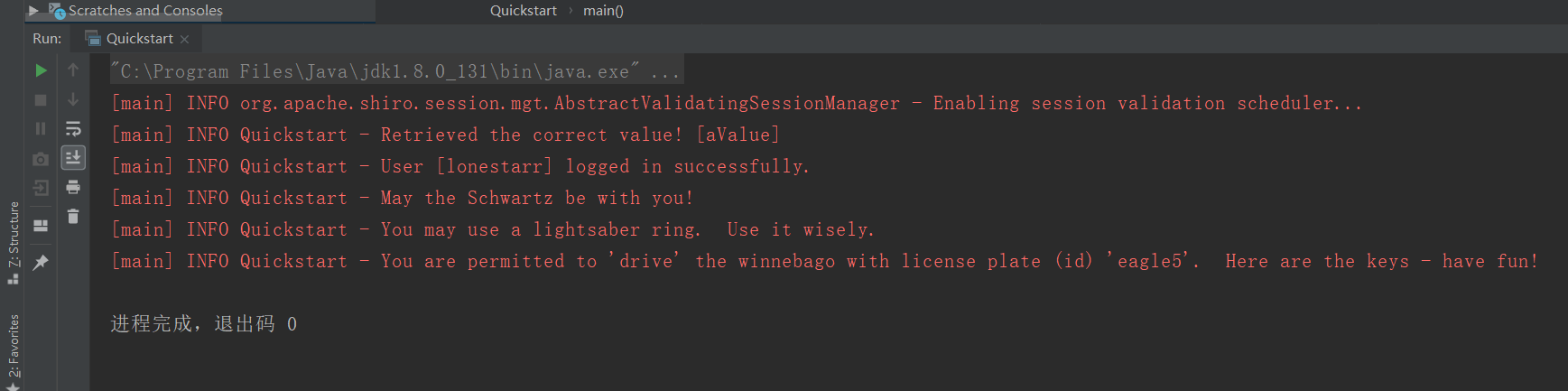

8. 启动项目,只打印出日志信息。如果报错了,检查一下maven依赖中是否存在`<scope>test</scope>`,删掉即可。

### 2.2、代码分析
1. 源代码
```java
import org.apache.shiro.SecurityUtils;
import org.apache.shiro.authc.*;
import org.apache.shiro.config.IniSecurityManagerFactory;
import org.apache.shiro.mgt.SecurityManager;
import org.apache.shiro.session.Session;
import org.apache.shiro.subject.Subject;
import org.apache.shiro.util.Factory;
import org.slf4j.Logger;
import org.slf4j.LoggerFactory;
public class Quickstart {
private static final transient Logger log = LoggerFactory.getLogger(Quickstart.class);
public static void main(String[] args) {
// 这三步固定的
Factory<SecurityManager> factory = new IniSecurityManagerFactory("classpath:shiro.ini");
SecurityManager securityManager = factory.getInstance();
SecurityUtils.setSecurityManager(securityManager);
// get the currently executing user:
// 获取当前用户对象 Subject
Subject currentUser = SecurityUtils.getSubject();
// Do some stuff with a Session (no need for a web or EJB container!!!)
// 通过当前用户获取session,然后存值,取值
Session session = currentUser.getSession();
session.setAttribute("someKey", "aValue");
String value = (String) session.getAttribute("someKey");
if (value.equals("aValue")) {
log.info("Subject==>session中的取值[" + value + "]");
}
// let's login the current user so we can check against roles and permissions:
// 判断当前用户是否被认证
if (!currentUser.isAuthenticated()) {
// 生成Token令牌
UsernamePasswordToken token = new UsernamePasswordToken("lonestarr", "vespa");
// 设置记住我
token.setRememberMe(true);
try {
// 执行登录操作
currentUser.login(token);
} catch (UnknownAccountException uae) {
// 用户不存在
log.info("There is no user with username of " + token.getPrincipal());
} catch (IncorrectCredentialsException ice) {
// 密码错误
log.info("Password for account " + token.getPrincipal() + " was incorrect!");
} catch (LockedAccountException lae) {
// 用户被锁定
log.info("The account for username " + token.getPrincipal() + " is locked. " +
"Please contact your administrator to unlock it.");
}
// ... catch more exceptions here (maybe custom ones specific to your application?
catch (AuthenticationException ae) {
// 认证异常
//unexpected condition? error?
}
}
/* 以下为权限判断 */
//say who they are:
//print their identifying principal (in this case, a username):
// 打印用户信息
log.info("User [" + currentUser.getPrincipal() + "] logged in successfully.");
//test a role:
// 判断角色
if (currentUser.hasRole("schwartz")) {
log.info("May the Schwartz be with you!");
} else {
log.info("Hello, mere mortal.");
}
// 粗粒度,简单的认证
//test a typed permission (not instance-level)
if (currentUser.isPermitted("lightsaber:wield")) {
log.info("You may use a lightsaber ring. Use it wisely.");
} else {
log.info("Sorry, lightsaber rings are for schwartz masters only.");
}
// 细粒度
//a (very powerful) Instance Level permission:
if (currentUser.isPermitted("winnebago:drive:eagle5")) {
log.info("You are permitted to 'drive' the winnebago with license plate (id) 'eagle5'. " +
"Here are the keys - have fun!");
} else {
log.info("Sorry, you aren't allowed to drive the 'eagle5' winnebago!");
}
//all done - log out!
// 注销
currentUser.logout();
System.exit(0);
}
}
主要方法:
// 获取当前用户对象 Subject Subject currentUser = SecurityUtils.getSubject(); // 判断当前用户是否被认证 if (!currentUser.isAuthenticated()) // 判断角色 if (currentUser.hasRole("schwartz")) // 粗粒度,简单的认证 if (currentUser.isPermitted("lightsaber:wield") // 注销 currentUser.logout();
3、在SpringBoot中集成
3.1、环境搭建

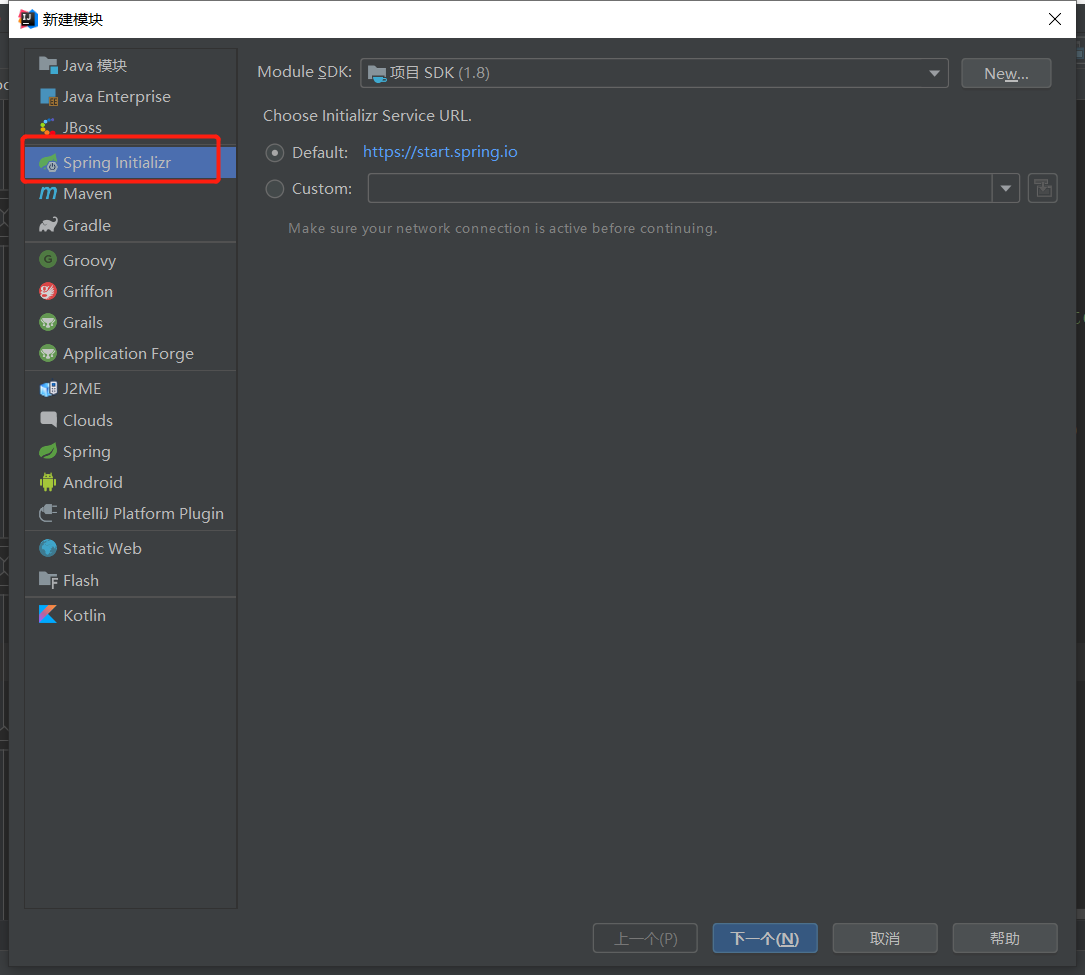

在当前项目中新建一个
module,创建shiro-springboot,必须选择Springboot的模板
导入web模板和Thymeleaf

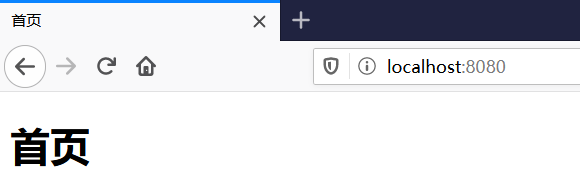

在
template目录下创建一个index首页创建controller,
MyController@Controller public class MyController { @RequestMapping({ "/index", "/"} ) public String toIndex(){ return "index"; } }启动浏览器,可以正常访问就环境搭建完成了

3.2、整合shiro
1、测试环境
导入shiro整合包
<!-- shiro-spring --> <dependency> <groupId>org.apache.shiro</groupId> <artifactId>shiro-spring</artifactId> <version>1.5.3</version> </dependency>自定义一个
UserRealm,需要继承AuthorizingRealmpublic class UserRealm extends AuthorizingRealm { // 认证 @Override protected AuthorizationInfo doGetAuthorizationInfo(PrincipalCollection principalCollection) { System.out.println("执行了授权====》doGetAuthorizationInfo"); return null; } // 授权 @Override protected AuthenticationInfo doGetAuthenticationInfo(AuthenticationToken authenticationToken) throws AuthenticationException { System.out.println("执行了认证====》doGetAuthenticationInfo"); return null; } }编写配置类
ShiroConfig@Configuration public class ShiroConfig { // ShiroFilterFactoryBean3 @Bean public ShiroFilterFactoryBean getShiroFilterFactoryBean(@Qualifier("getDefaultWebSecurityManager") DefaultWebSecurityManager defaultWebSecurityManager){ ShiroFilterFactoryBean bean = new ShiroFilterFactoryBean(); // 设置安全管理器 bean.setSecurityManager(defaultWebSecurityManager); return bean; } // DefaultWebSecurityManage2 @Bean public DefaultWebSecurityManager getDefaultWebSecurityManager(@Qualifier("userRealm") UserRealm userRealm){ DefaultWebSecurityManager securityManager = new DefaultWebSecurityManager(); // 关联userRealm securityManager.setRealm(userRealm); return securityManager; } // 创建realm对象,需要自定义1 @Bean public UserRealm userRealm(){ return new UserRealm(); } }在
template目录下创建user文件夹创建
add.html,update.html<!DOCTYPE html> <html lang="en"> <head> <meta charset="UTF-8"> <title>Title</title> </head> <body> <h1>执行了add</h1> </body> </html>修改controller进行跳转
@Controller public class MyController { @RequestMapping({ "/index", "/"} ) public String toIndex(){ return "index"; } @RequestMapping("user/add") public String toAdd(){ return "user/add"; } @RequestMapping("user/update") public String toUpdate(){ return "user/update"; } }在首页增加跳转
<!DOCTYPE html> <html lang="en" xmlns:th="http://www.thymeleaf.org"> <head> <meta charset="UTF-8"> <title>首页</title> </head> <body> <h1>首页</h1> <a th:href="@{ /user/add} " >add</a> | <a th:href="@{ /user/update} ">update</a> </body> </html>
2、进行拦截
修改
ShiroConfig的代码// ShiroFilterFactoryBean3 @Bean public ShiroFilterFactoryBean getShiroFilterFactoryBean(@Qualifier("getDefaultWebSecurityManager") DefaultWebSecurityManager defaultWebSecurityManager){ ShiroFilterFactoryBean bean = new ShiroFilterFactoryBean(); // 设置安全管理器 bean.setSecurityManager(defaultWebSecurityManager); // 添加shiro的内置过滤器 /* anon:无需认证就可以访问 authc:必须认证了才能访问 user:必须拥有 记住我 功能才能用 perms:拥有对某个资源的权限才能访问 role:拥有某个角色权限才能访问 */ Map<String, String> filterMap = new LinkedHashMap<>(); filterMap.put("/user/*", "authc"); bean.setFilterChainDefinitionMap(filterMap); // 设置登录的请求 bean.setLoginUrl("/toLogin"); return bean; }由于没有默认的登录页面,需要自己进行创建

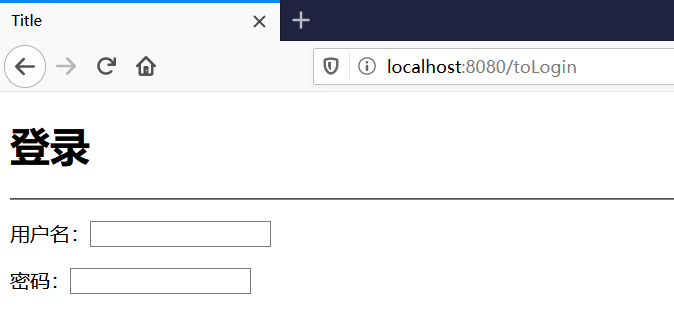

<!DOCTYPE html> <html lang="en" xmlns:th="http://www.thymeleaf.org"> <head> <meta charset="UTF-8"> <title>Title</title> </head> <body> <h1>登录</h1> <hr> <form th:action="@{ /login} "> <p>用户名:<input type="text" name="username"></p> <p>密码:<input type="password" name="password"></p> <p><input type="submit" value="登录"></p> </form> </body> </html>修改控制类跳转到登录页
@RequestMapping("/toLogin") public String tuLogin(){ return "login"; }测试:现在点击任意一个都会跳转到登录页面

3、认证
在UserRealm中设置
修改控制类,接收登录的信息
@RequestMapping("/toLogin") public String tuLogin(String username, String password, Model model){ // 获取当前用户 Subject subject = SecurityUtils.getSubject(); // 封装用户的登陆数据 UsernamePasswordToken token = new UsernamePasswordToken(username, password); // 进行提交测试 try{ // 执行登录操作 subject.login(token); return "index"; } catch (UnknownAccountException uae) { // 用户不存在 model.addAttribute("msg", "用户名不存在"); return "login"; } catch (IncorrectCredentialsException ice) { // 密码错误 model.addAttribute("msg", "密码错误"); return "login"; } }前端获取错误信息

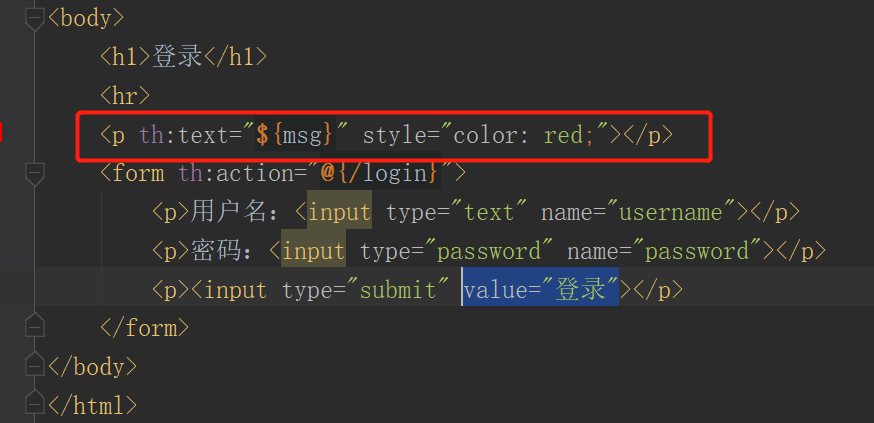

<p th:text="${ msg} " style="color: red;"></p>

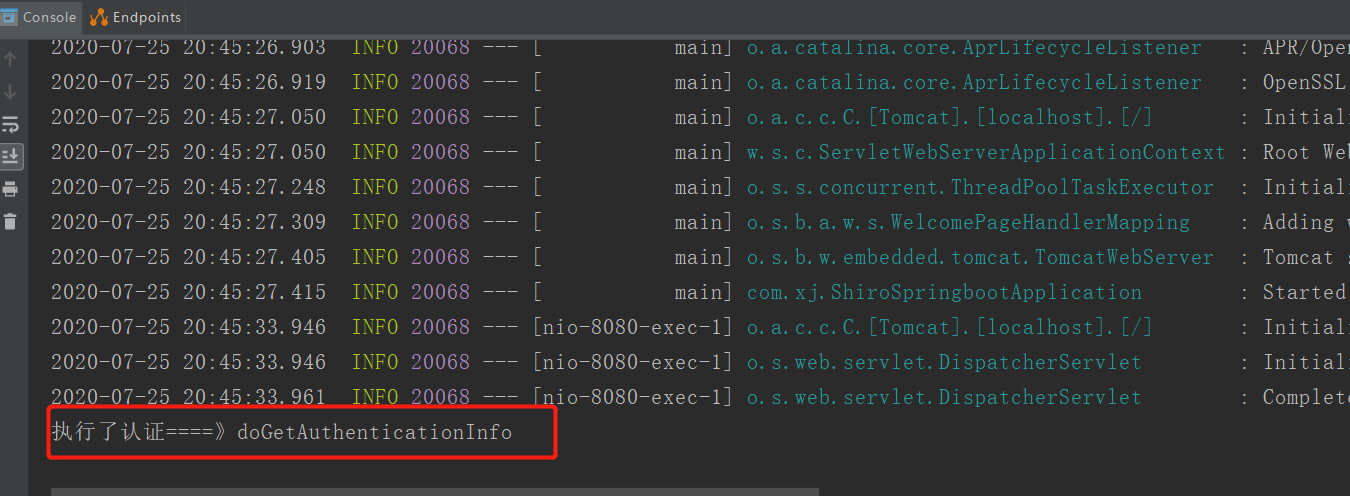

测试,发现会经过
UserRealm代码的认证功能
修改
UserRealm代码,进行认证,密码不需要我们进行判断// 认证 @Override protected AuthenticationInfo doGetAuthenticationInfo(AuthenticationToken token) throws AuthenticationException { System.out.println("执行了认证====》doGetAuthenticationInfo"); // 用户名,密码的设置 String name = "root"; String password = "123456"; UsernamePasswordToken userToken = (UsernamePasswordToken)token; // 用户名认证 if(!userToken.getUsername().equals(name)){ // 抛出UnknownAccountException未知用户异常 return null; } // 密码认证交给Shiro进行操作 return new SimpleAuthenticationInfo("",password,""); } }测试,输入
UserRealm定义的用户名和密码就可以跳到首页
3.3、shiro整合Mybatis
导入依赖
<!--mysql驱动--> <dependency> <groupId>mysql</groupId> <artifactId>mysql-connector-java</artifactId> </dependency> <!--Druid数据源--> <dependency> <groupId>com.alibaba</groupId> <artifactId>druid</artifactId> <version>1.1.23</version> </dependency> <!--Mybatis--> <dependency> <groupId>org.mybatis.spring.boot</groupId> <artifactId>mybatis-spring-boot-starter</artifactId> <version>2.1.3</version> </dependency> <!--log4j--> <dependency> <groupId>log4j</groupId> <artifactId>log4j</artifactId> <version>1.2.17</version> </dependency> <!--Lombok--> <dependency> <groupId>org.projectlombok</groupId> <artifactId>lombok</artifactId> <version>1.18.12</version> </dependency>编写配置文件

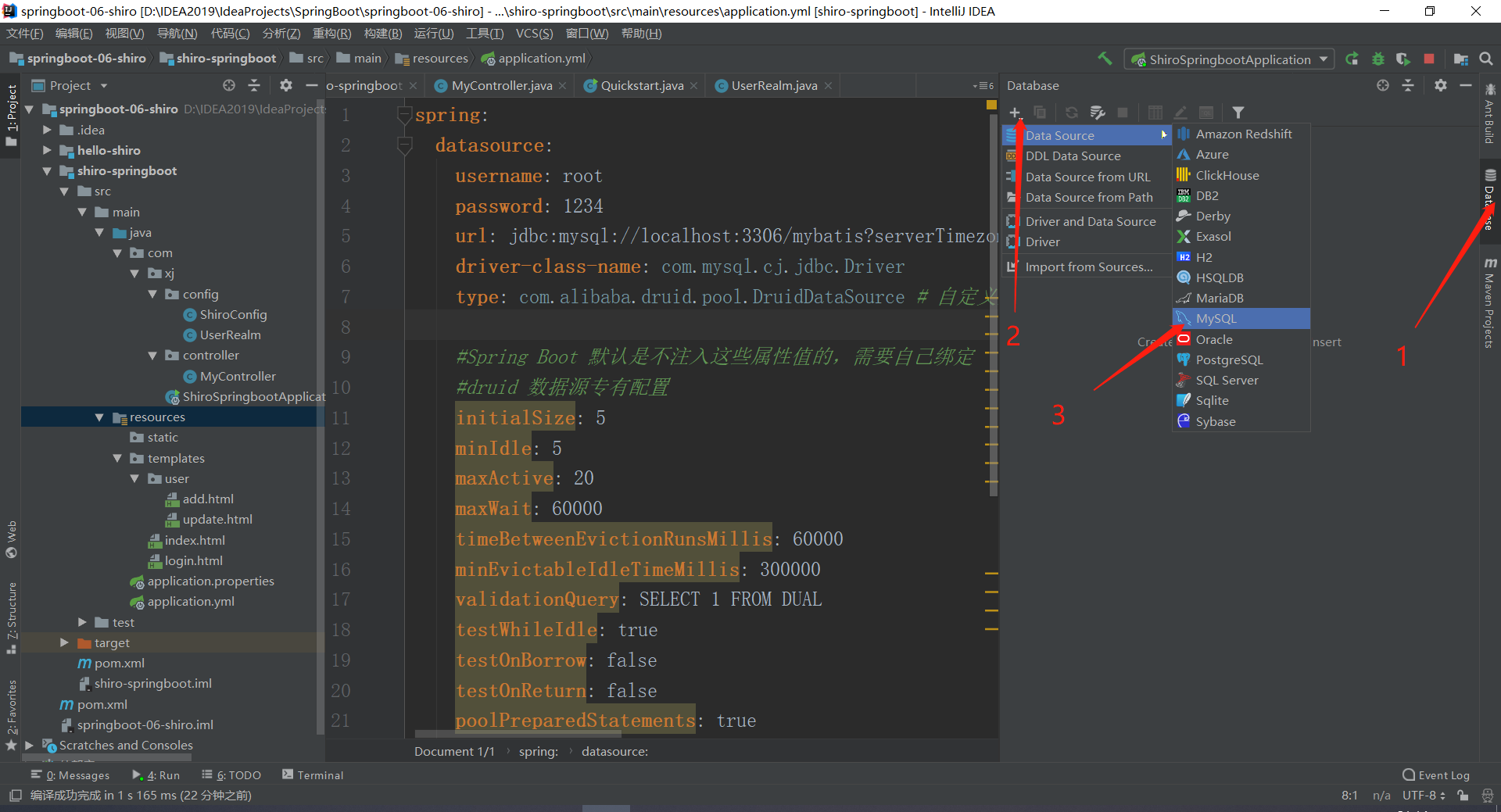

application.ymlspring: datasource: username: root password: 1234 url: jdbc:mysql://localhost:3306/mybatis?serverTimezone=GMT&createDatabaseIfNotExist=true&useUnicode=true&characterEncoding=utf-8&autoReconnect=true driver-class-name: com.mysql.cj.jdbc.Driver type: com.alibaba.druid.pool.DruidDataSource # 自定义数据源 #Spring Boot 默认是不注入这些属性值的,需要自己绑定 #druid 数据源专有配置 initialSize: 5 minIdle: 5 maxActive: 20 maxWait: 60000 timeBetweenEvictionRunsMillis: 60000 minEvictableIdleTimeMillis: 300000 validationQuery: SELECT 1 FROM DUAL testWhileIdle: true testOnBorrow: false testOnReturn: false poolPreparedStatements: true #配置监控统计拦截的filters,stat:监控统计、log4j:日志记录、wall:防御sql注入 #如果允许时报错 java.lang.ClassNotFoundException: org.apache.log4j.Priority #则导入 log4j 依赖即可,Maven 地址:https://mvnrepository.com/artifact/log4j/log4j filters: stat,wall,log4j maxPoolPreparedStatementPerConnectionSize: 20 useGlobalDataSourceStat: true connectionProperties: druid.stat.mergeSql=true;druid.stat.slowSqlMillis=500在IDEA中连接数据库



在
application.properties配置文件中配置Mybatismybatis.type-aliases-package=com.xj.pojo mybatis.mapper-locations=classpath:mapper/*.xml编写实体类
User@Data @AllArgsConstructor @NoArgsConstructor public class User { private int id; private String name; private String pwd; }编写
UserMapper接口,需要导入两个注解@Repository,@Mapper@Repository @Mapper public interface UserMapper { User queryUserByName(String name); }在
resources目录下创建mapper,然后创建UserMapper.xml,然后编写映射文件<?xml version="1.0" encoding="UTF-8" ?> <!DOCTYPE mapper PUBLIC "-//mybatis.org//DTD Mapper 3.0//EN" "http://mybatis.org/dtd/mybatis-3-mapper.dtd"> <mapper namespace="com.xj.mapper.UserMapper"> <select id="queryUserByName" parameterType="String" resultType="User"> SELECT * from user where name = #{ name} </select> </mapper>编写业务层
Userservice接口package com.xj.service; import com.xj.pojo.User; public interface UserService { User queryUserByName(String name); }业务接口实现类
UserserviceImpl@Service public class UserserviceImpl implements UserService { I @Autowired private UserMapper userMapper; @Override public User queryUserByName(String name) { return userMapper.queryUserByName(name); } }需要加上注解@Service才会被Spring接管

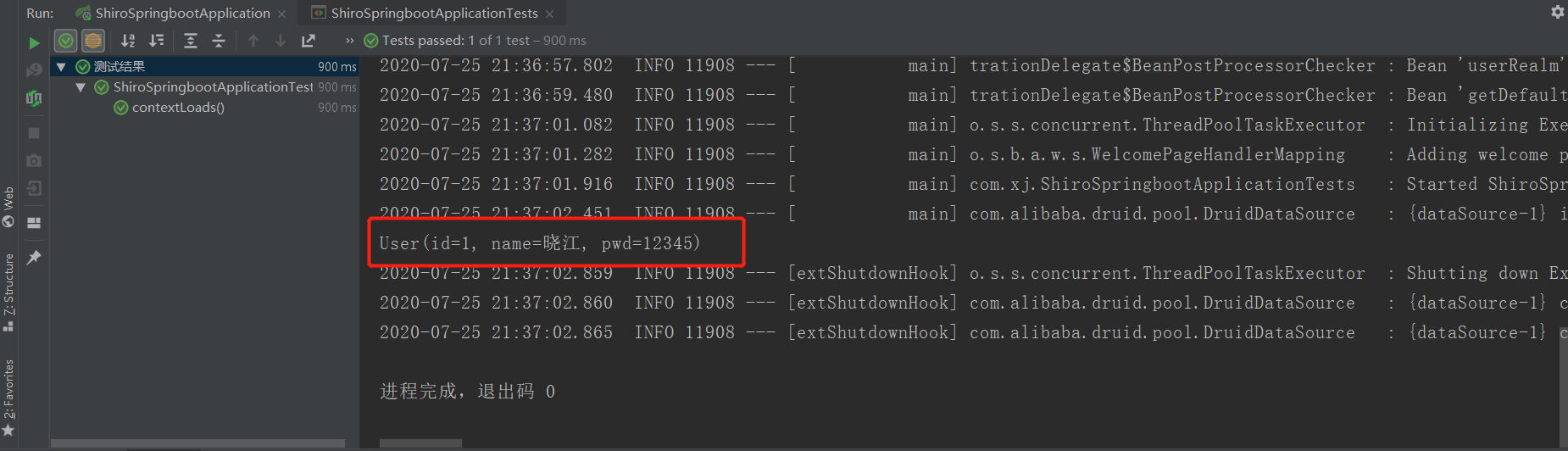

编写测试类测试
@SpringBootTest class ShiroSpringbootApplicationTests { @Autowired private UserServiceImpl userService; @Test void contextLoads() { System.out.println(userService.queryUserByName("晓江")); } }
修改配置类
UserRealm,将用户名认证从数据库获取public class UserRealm extends AuthorizingRealm { @Autowired private UserServiceImpl userService; // 授权 @Override protected AuthorizationInfo doGetAuthorizationInfo(PrincipalCollection principalCollection) { System.out.println("执行了授权====》doGetAuthorizationInfo"); return null; } // 认证 @Override protected AuthenticationInfo doGetAuthenticationInfo(AuthenticationToken token) throws AuthenticationException { System.out.println("执行了认证====》doGetAuthenticationInfo"); // 获取登录令牌 UsernamePasswordToken userToken = (UsernamePasswordToken)token; // 从数据库中获取用户信息 User user = userService.queryUserByName(userToken.getUsername()); // 用户名认证 if(user == null){ // 抛出UnknownAccountException未知用户异常 return null; } // 密码认证交给Shiro进行操作 return new SimpleAuthenticationInfo("",user.getPwd(),""); } }登录测试:这个时候要启动的是整个SpringBoot服务

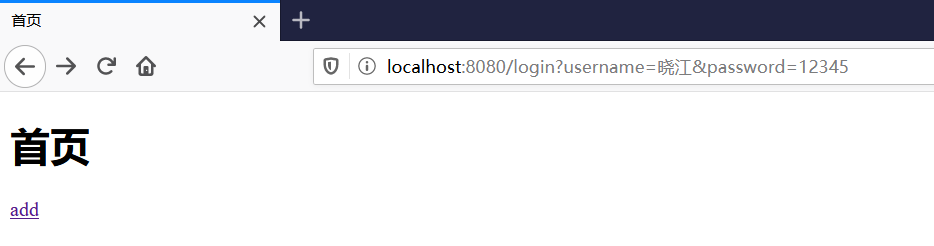

可以使用数据库中的用户信息登录即可
注意点:
- 在
UserMapper接口需要加上:两个注解@Repository,@Mapper - 业务接口实现类

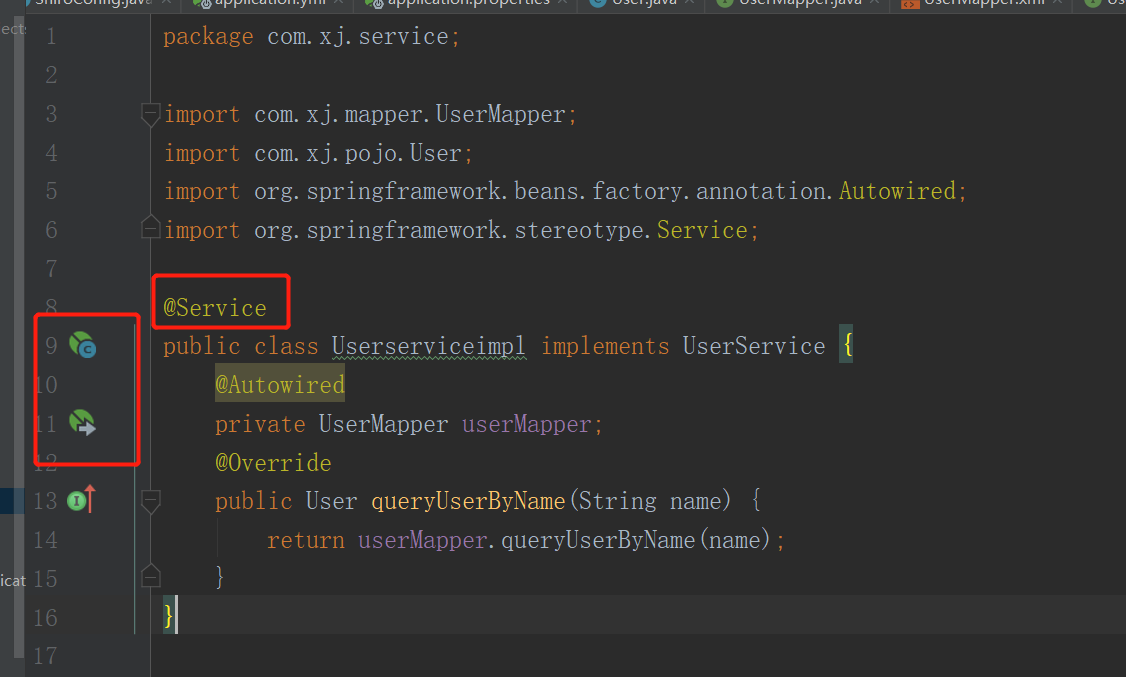

UserserviceImpl需要加上:@Service注解 - 配置完
mapper.xml文件之后需要在总的配置文件中进行声明
3.4、shiro请求授权的实现
授权是在config中进行的操作
1、授权拦截

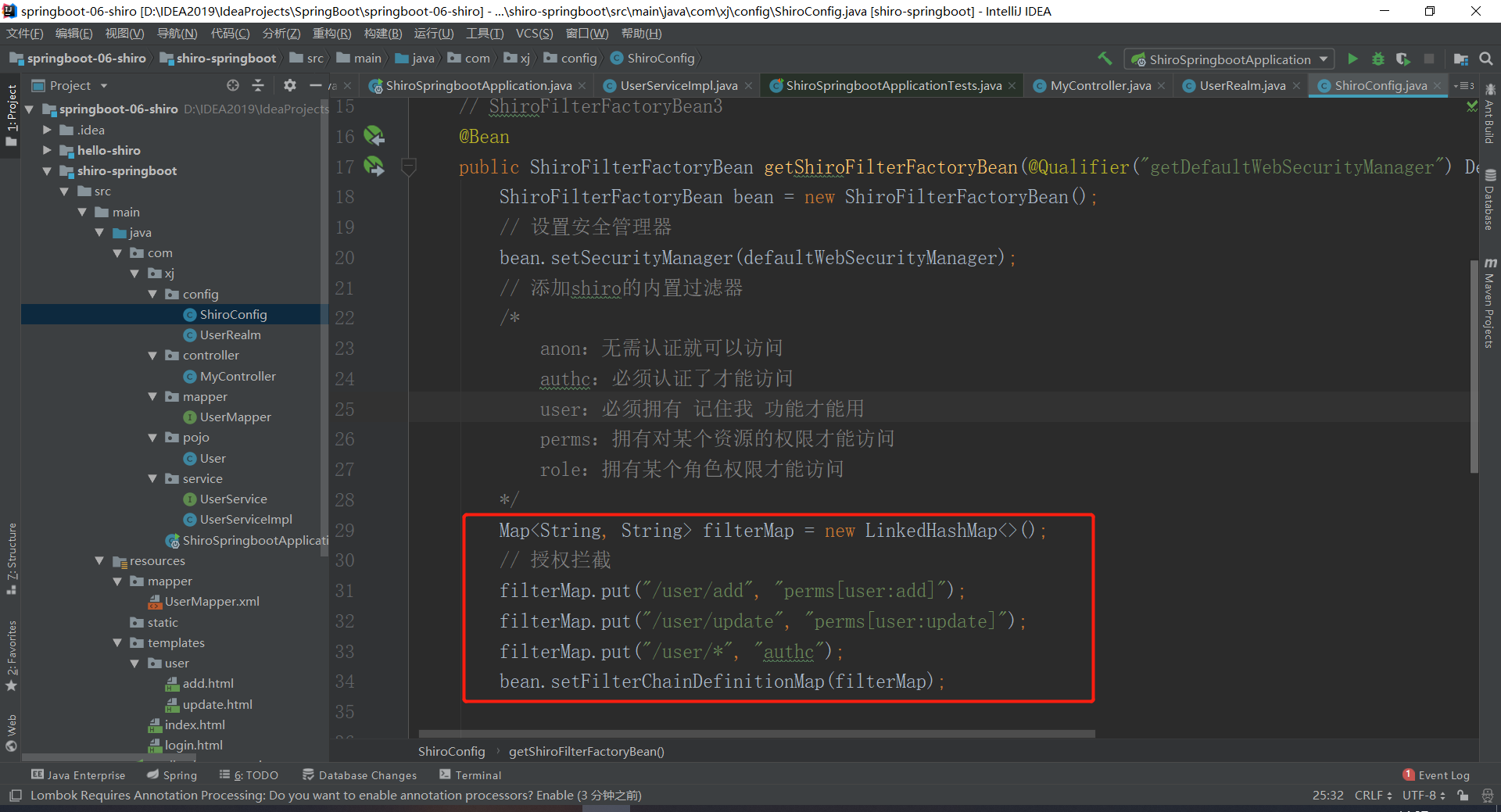

编写
ShiroConfig的代码Map<String, String> filterMap = new LinkedHashMap<>(); // 授权拦截 filterMap.put("/user/add", "perms[user:add]"); filterMap.put("/user/update", "perms[user:update]"); filterMap.put("/user/*", "authc"); bean.setFilterChainDefinitionMap(filterMap);

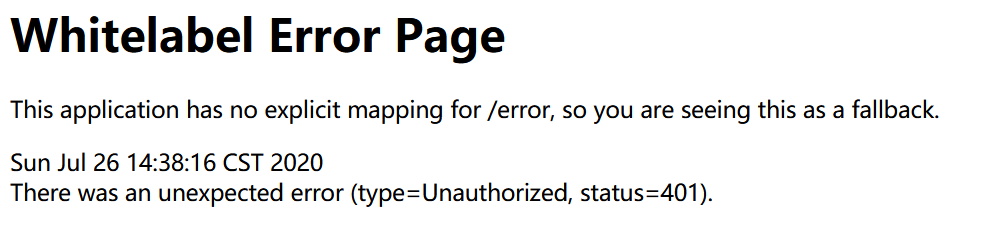

此时进入add页面会显示401未授权错误

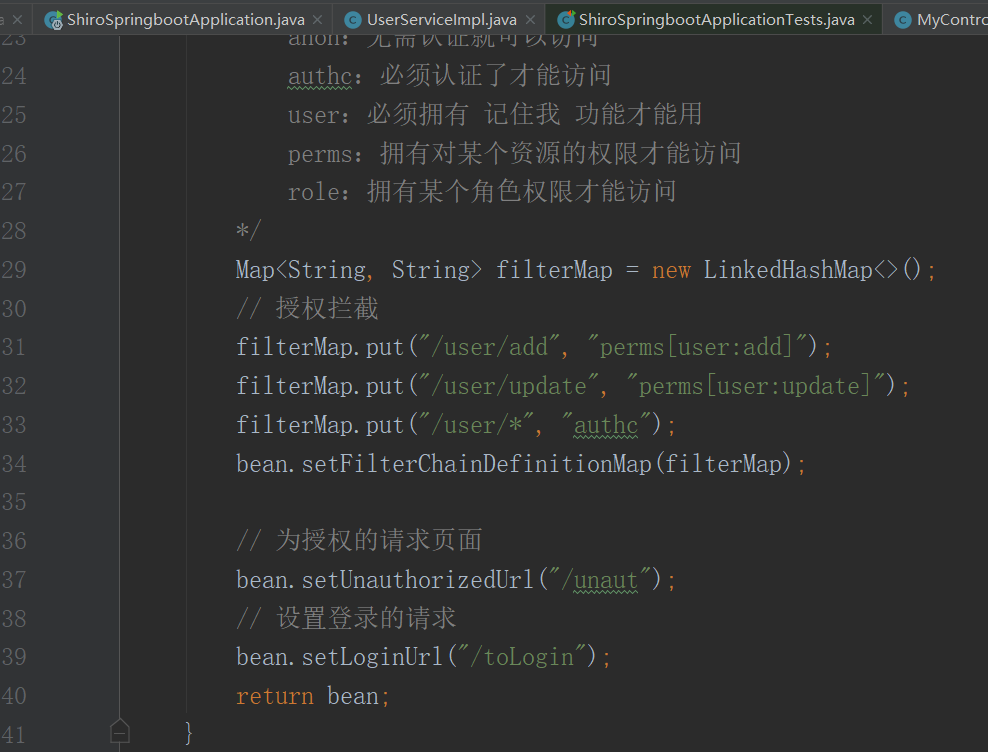

设置未授权页面
编写控制类
@RequestMapping("/unaut") @ResponseBody public String unaunt(){ return "未经授权无法访问此页面"; }编写配置类
// 为授权的请求页面 bean.setUnauthorizedUrl("/unaut");
2、给用户进行授权

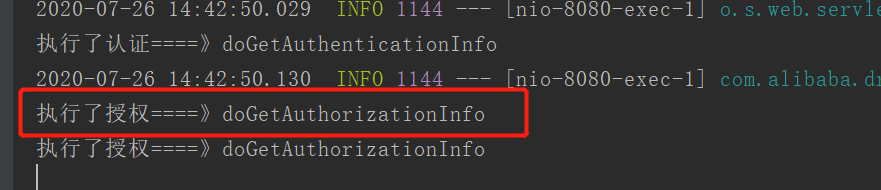

进入需要授权的页面就会经过这里

在
UserRealm中进行编写// 授权 @Override protected AuthorizationInfo doGetAuthorizationInfo(PrincipalCollection principalCollection) { System.out.println("执行了授权====》doGetAuthorizationInfo"); // 给所有用户授权 SimpleAuthorizationInfo info = new SimpleAuthorizationInfo(); info.addStringPermission("user:add"); return info; }修改数据库,增加用户对应的权限,修改后上传即可

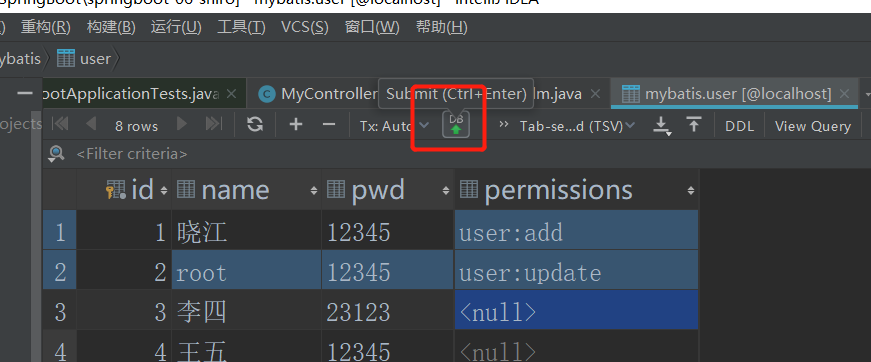

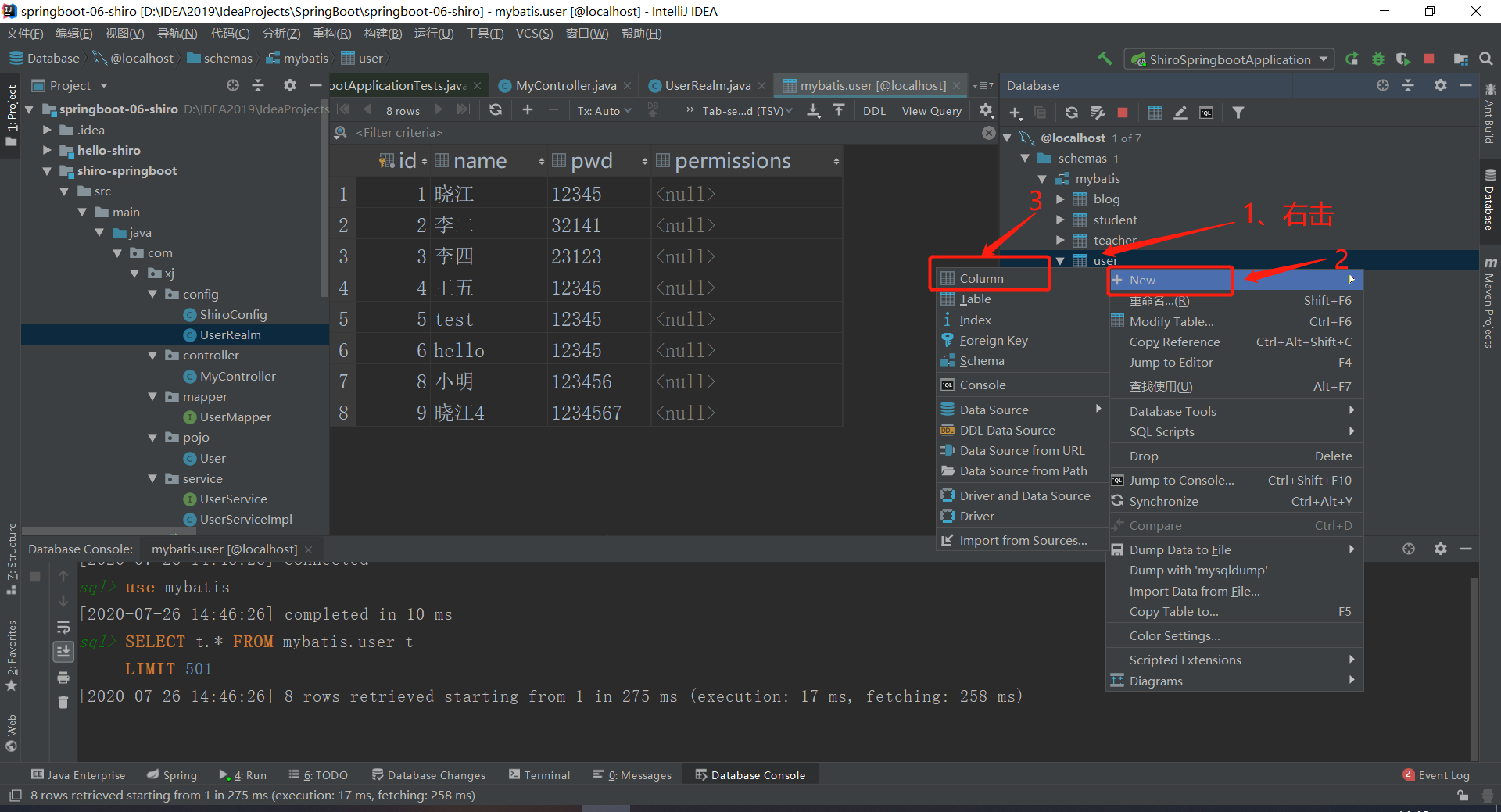

修改实体类,增加权限属性即可

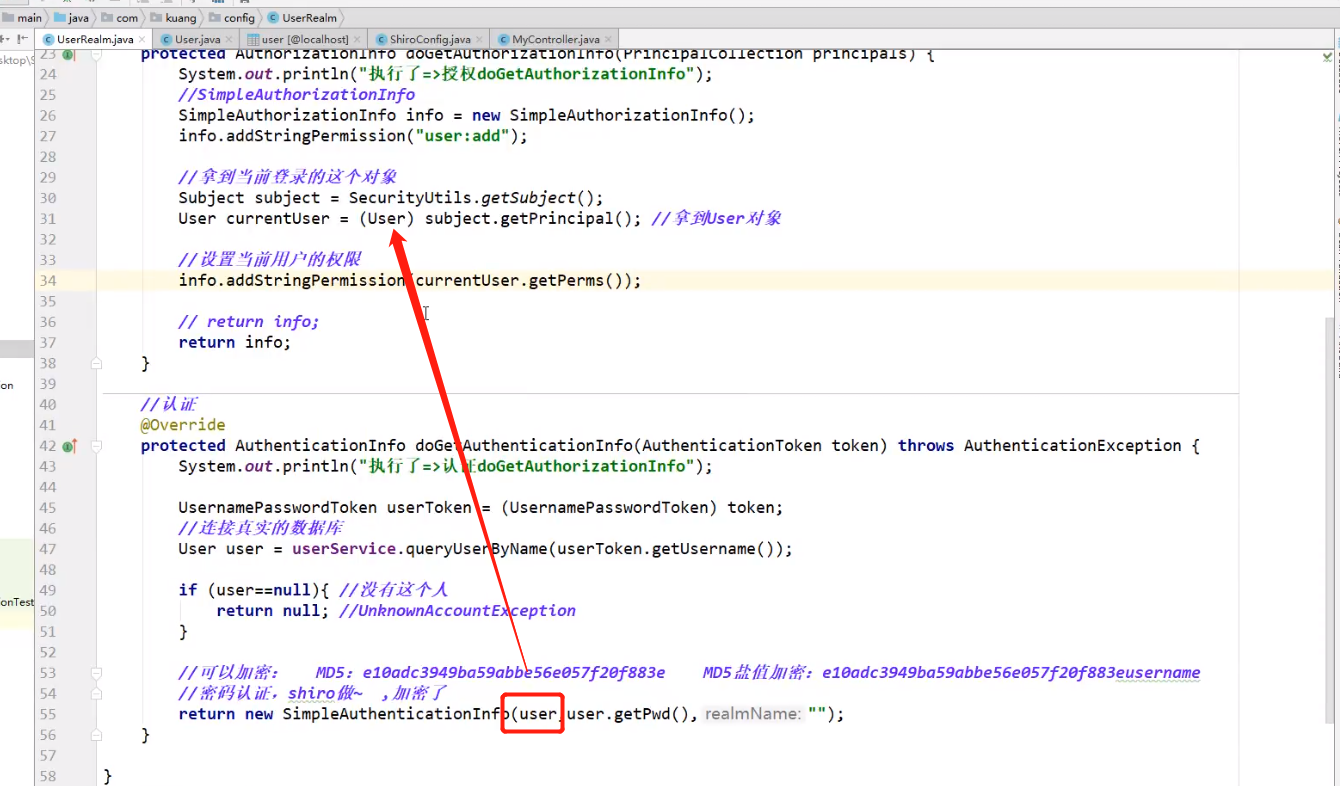

获取用户的权限
修改认证的代码,将用户信息提交到当前用户
// 密码认证交给Shiro进行操作 return new SimpleAuthenticationInfo(user,user.getPwd(),"");在授权那里进行获取
@Override protected AuthorizationInfo doGetAuthorizationInfo(PrincipalCollection principalCollection) { System.out.println("执行了授权====》doGetAuthorizationInfo"); // 获取用户信息 Subject subject = SecurityUtils.getSubject(); // 拿到用户对象 User currentUser = (User) subject.getPrincipal(); // 设置当前用户的权限 SimpleAuthorizationInfo info = new SimpleAuthorizationInfo(); info.addStringPermission(currentUser.getPermissions()); // 记得返回新的信息 return info; }
3.5、Shiro整合Thymeleaf
导入整合包
<!-- thymeleaf-extras-shiro --> <dependency> <groupId>com.github.theborakompanioni</groupId> <artifactId>thymeleaf-extras-shiro</artifactId> <version>2.0.0</version> </dependency>编写
ShiroConfig代码// ShiroDialect:用来整合shiro和thymeleaf @Bean public ShiroDialect getShiroDialect(){ return new ShiroDialect(); }修改首页代码,增加命名空间
xmlns:shiro="http://www.thymeleaf.org/thymeleaf-extras-shiro"执行判断
<!DOCTYPE html> <html lang="en" xmlns:th="http://www.thymeleaf.org" xmlns:shiro="http://www.thymeleaf.org/thymeleaf-extras-shiro"> <head> <meta charset="UTF-8"> <title>首页</title> </head> <body> <h1>首页</h1> <div shiro:hasPermission="user:add"> <a th:href="@{ /user/add} " >add</a> </div> <div shiro:hasPermission="user:update"> <a th:href="@{ /user/update} ">update</a> </div> </body> </html>

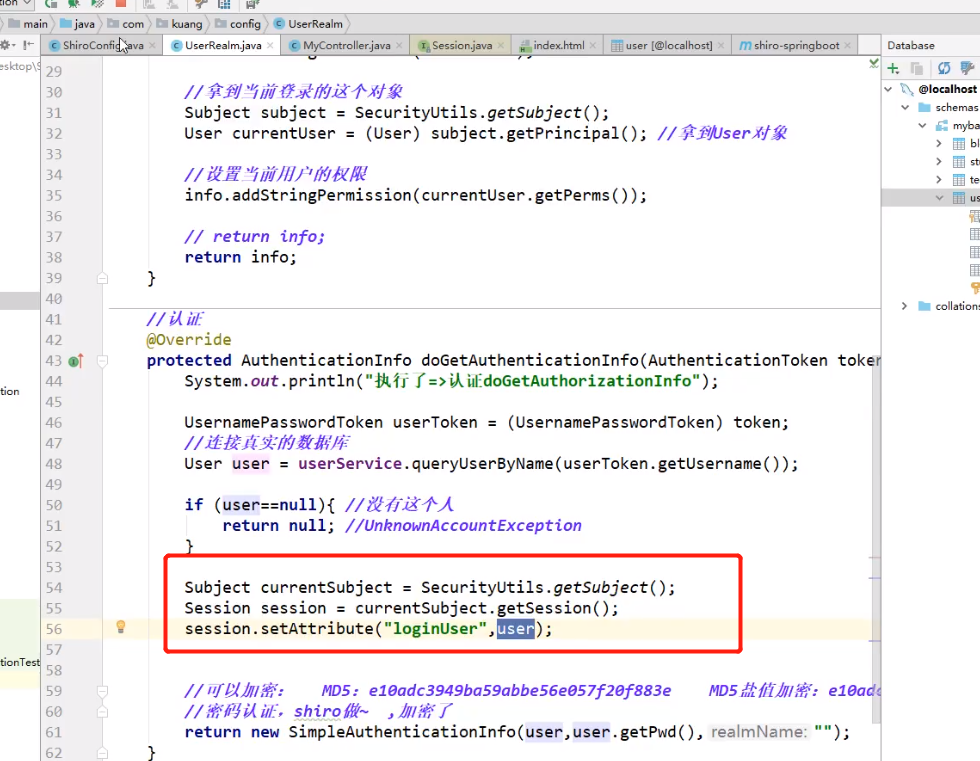

登录成功之后在
UserRealm获取Session// 存储认证信息 Subject subject = SecurityUtils.getSubject(); Session session = subject.getSession(); session.setAttribute("loginUser", user);
前端判断登录按钮
<div th:if="${ session.loginUser == null} "> <a th:href="@{ /toLogin} ">登录</a> </div>增加注销按钮
修改控制类,增加注销路由
@RequestMapping("/logout") public String logout(){ Subject subject = SecurityUtils.getSubject(); // 注销 subject.logout(); return "index"; }修改主页,增加注销按钮
<div th:if="${ session.loginUser != null} "> <a th:href="@{ /logout} ">注销</a> </div>
现在就可以给不同权限的用户展示不同的内容了~
